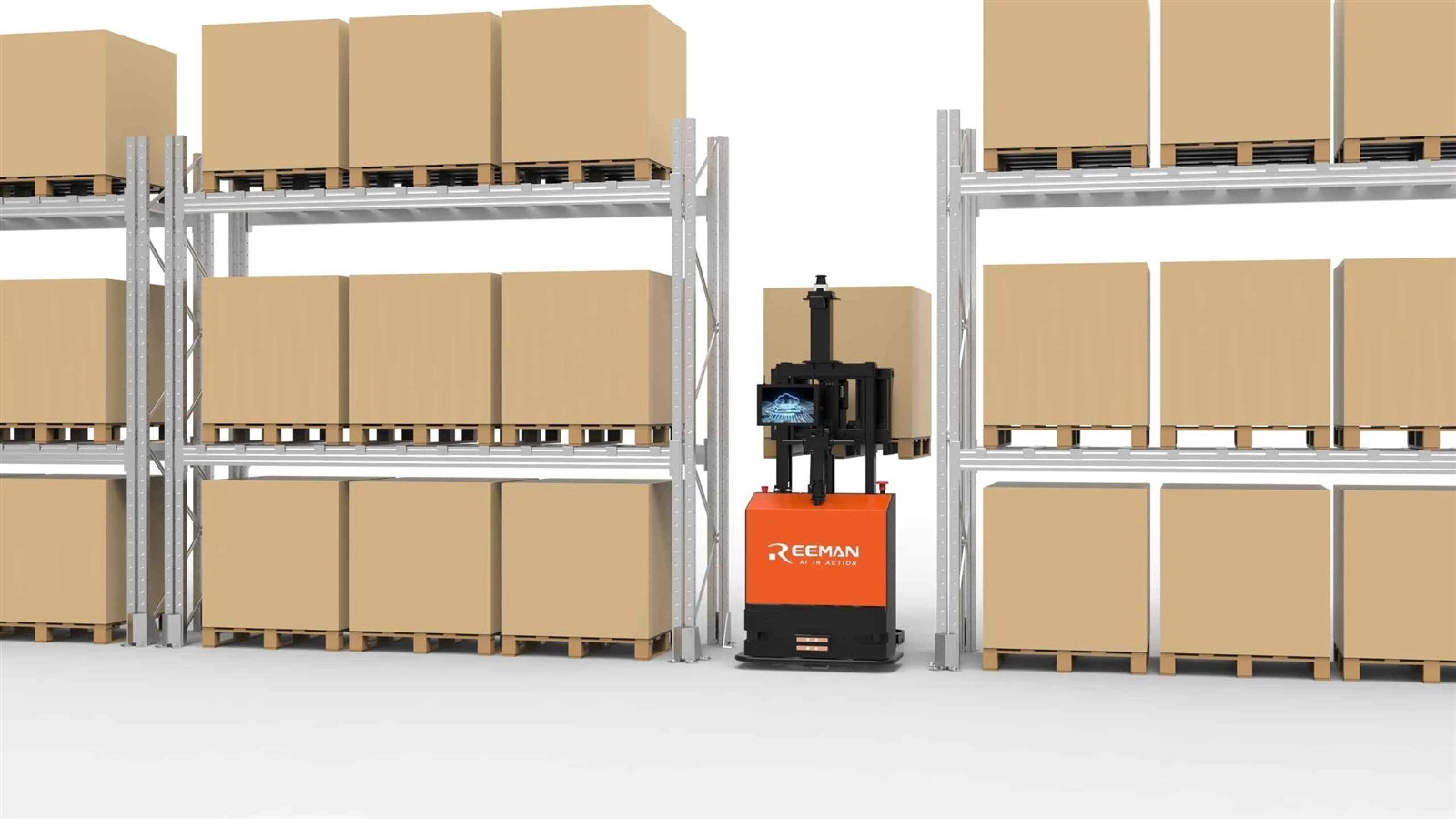

For pallet transfers through compact factory layouts, REEMAN recommends the Mini Autonomous Forklift. Mini combines automatic pallet recognition and handling with a 1,000 kg rated capacity and a 1 m lift height, making it a practical candidate for production-to-staging movements and low-height placement. Its stated 1.1 m passage capability addresses narrow travel routes; the space needed to turn, approach a pallet and withdraw the forks is assessed separately.
What Mini's 1.1 m passage capability means
A narrow section between two work areas is different from the space where a forklift collects a pallet. Mini's stated 1.1 m capability is a passage specification-not a claim that it can turn, pick up and place every loaded pallet within a 1.1 m working aisle.
At a corner, the loaded pallet follows a turning path. At a pickup station, Mini needs room to approach the fork openings; after placement, it needs space to withdraw. These movements determine whether a compact route also has workable stations at both ends. A layout showing the actual pallet dimensions and entry direction is therefore more useful than the narrowest passage measurement alone.
Match load weight and handling height to the task
Mini's 1,000 kg rating describes load capacity. Count the pallet and goods together, and consider their dimensions and weight distribution when matching the handling arrangement. The 1 m specification describes lift height and is relevant to low-height pickup and placement.
Load capacity, lift height and passage are separate specifications. Route design combines them with the loaded pallet's dimensions, load distribution and each handling movement. For a recurring transfer between production and staging, Mini is worth considering when the load, required height and station movements each fit the application.
Automatic pickup makes the compact route useful
Mini supports Laser SLAM navigation, automatic pallet recognition, pickup and point-to-point delivery. Navigation brings the forklift to the station; recognition and handling allow it to engage the pallet and move it to the destination. This is why Mini suits a recurring material movement rather than simply a narrow-aisle driving demonstration.
The pallet's bottom structure and fork openings matter at these endpoints. A station that presents the pallet consistently gives the project a defined handling task to configure. Mini also supports automatic recharging, which can be planned around the transfer schedule without turning every move into an operator-driven job.
Start with the route that needs a compact forklift
Choose a transfer where restricted space and low-height pallet handling are the main constraints. Show REEMAN the narrow passage, required turns and both stations in the same layout. A representative loaded-pallet demonstration should then cover approach, pickup, travel, placement and fork withdrawal-not only straight-line passage. This keeps the buying decision focused on whether Mini can perform your particular transfer.
Frequently Asked Questions
Q: Is a 1.1 m aisle enough for every Mini operation?
A: Mini's stated 1.1 m capability concerns passage. Turning, approaching a pallet and withdrawing the forks require a separate layout assessment using the loaded pallet's dimensions and the station arrangement.
Q: Does Mini's 1,000 kg rating include the pallet?
A: Assess the combined pallet-and-goods weight against Mini's 1,000 kg rated capacity. Pallet structure, load dimensions and weight distribution also affect the handling arrangement.
Q: Is Mini suitable for low-height pallet placement?
A: Mini has a stated 1 m lift height, making it relevant to low-height pickup and placement. Match the actual pickup and destination heights to that capability; the passage specification does not establish the space needed at those stations.
Q: Can Mini pick up pallets automatically, or does an operator drive each move?
A: Mini supports automatic pallet recognition, pickup and point-to-point delivery. The route and handling actions are configured for the pallet and stations, rather than requiring an operator to steer every transfer.
Have a compact route in mind? Contact REEMAN about Mini with your loaded pallet dimensions and weight, pickup and placement heights, and a layout showing passages, corners and stations.
